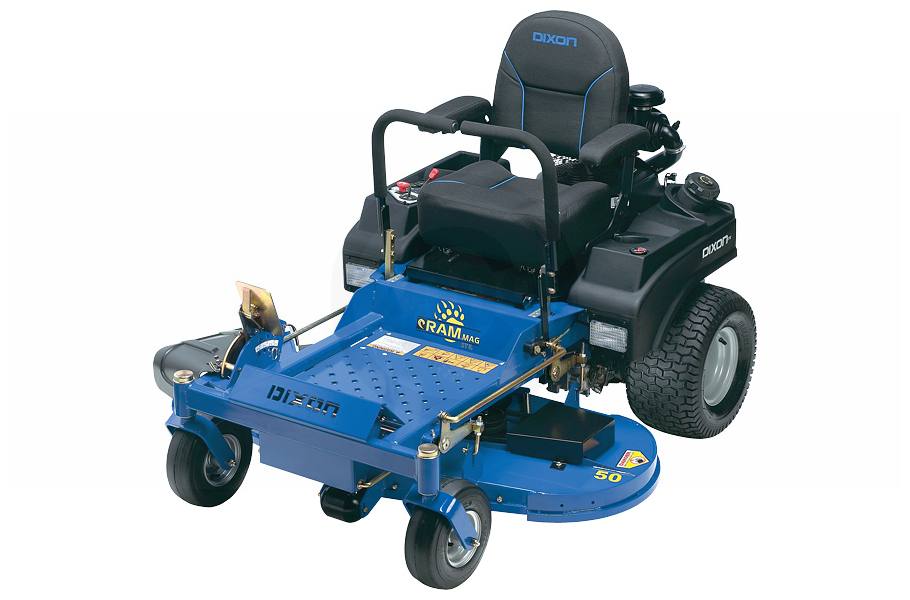

2009 Dixon RAM MAG® 50 Honda 20hp
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Professional performance and superior features unite in Dixon's Ram Mag ZTR that can handle any large property just like the pros. Performance, comfort and durability are enhanced with commercial rated engine options, deep cushioned seats, standard headlights and heavy-duty hydraulic transmissions with charge pumps that provide smoother, quieter operation.

  • Durable, oversized cast iron blade hubs.
  • Convenient control panel
  • Durable Fusion™ cutting blades that stay sharp longer
  • Dual wide-angle headlights
  • High performance Dixon® Tunnel Force™ design cutting deck
  • Fully serviceable ZT2800 transmission
Attachments
  • Twin Bag Grass Catcher
  • Mulch Kit
  • Mower Cover
  • Battery Charger / Manager
Warranty
  • Homeowner Warranty: 3 Years Parts, 2 Years Labor
  • Commercial Warranty: 1 Years Parts and Labor
Specifications
  • Engine manufacturer: Honda
  • Power output: 20 hp
  • Fuel tank volume: 5.2 gal.
  • Electrical System: 20 amp
  • Starter: Electric Start
  • Battery voltage: 12 V
  • Electromagnetic clutch: True
  • Speed forward, min-max: 0-7 mph
  • Steering Control: Dual Thick Foam Padded Levers
  • Anti-Scalp Wheels: Nose roller
  • Drive System: Hydro Gear ZT 2800 with Charge Pumps
  • Tire dimensions, front: 11 x 4.10 - 5
  • Tire dimensions, rear: 18 x 9.5 - 9
  • Spindle Type: Cast Iron, greasable spindles
  • Headlights: Standard
  • Air cleaner: Standard
  • Hour meter: True
  • Cup holder: Yes
  • Seat type: Premium Ballistic
  • Seat Springs: Standard
  • Productivity: 2.8 acres/hr.
  • Deck construction: 11 Guage
  • Deck construction Welded steel
  • Overall Deck Width: 60 in.
  • Deck Width w/ Deflector Retracted: 51 in.
  • Blade engagement: Electromagnetic clutch
  • Blade type: Fusion High Lift
  • Number of blades: 3
  • Cutting width: 50 in.
  • Cutting height, min-max: 1.5 in. - 4.5 in.
  • Weight: 665 lbs
  • Base machine, width (chute up): 51 in.
  • Base machine, width (chute down): 60 in.
  • Engine Type: GXV620
NOTES:

All horsepower values are as rated by the engine manufacturer.


Specifications

Engine
Engine Manufacturer Honda
Horse Power 20 hp
Engine Type GXV620
General
Transmission Hydro Gear ZT 2800 with Charge Pumps
Wheel Size Tire dimensions, front: 11 x 4.10 - 5; Tire dimensions, rear: 18 x 9.5 - 9
Fuel Capacity 5.2 gal.
Deck
Deck Size Overall Deck Width: 60 in.; Deck Width w/ Deflector Retracted: 51 in.; Cutting width: 50 in.
Discharge Type Side, Optional: Bagger, Mulcher

Compare Models

 Print








Year 2009
Manufacturer Dixon Lawn Mowers
Model RAM MAG® 50 Honda 20hp
Style Riding
Deck
Deck Size Overall Deck Width: 60 in.; Deck Width w/ Deflector Retracted: 51 in.; Cutting width: 50 in.
Discharge Type Side, Optional: Bagger, Mulcher
Engine
Engine Manufacturer Honda
Horse Power 20 hp
Engine Type GXV620
Displacement
General
Transmission Hydro Gear ZT 2800 with Charge Pumps
Wheel Size Tire dimensions, front: 11 x 4.10 - 5; Tire dimensions, rear: 18 x 9.5 - 9
Fuel Capacity 5.2 gal.
